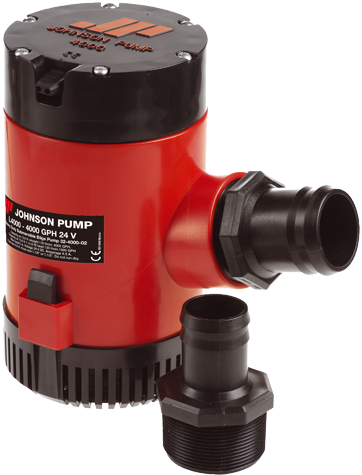

Johnson Pump L-Series Bilge Pump L4000, 24v/7,5a, 252l/Min, Hose Connection 1-1/2" & 2"
Article number
6632400002
Description
The Johnson Pump L-series bilge pump L4000 (article number: 6632400002, EAN: 8719182073123) is designed for pumping applications. The product weighs 2.45 kg and has maximum dimensions of Ø121 x 216 mm. The pump operates on a 24V voltage with a current draw of 7.5A (fuse rating 15A). It offers a straight-flow capacity of 252 l/min and a capacity of 166 l/min at a 1-metre head height. The unit features a mechanical seal and comes with dual hose connections of 1-1/2" (38 mm) and 2" (50.8 mm).
Scope of Delivery:
This item is supplied as a standalone bilge pump (1 piece).
Files
Drawings
| pdf-allpa-Johnson Pump-Submersible |
Properties
General
| Articlenumber | 6632400002 |
| EAN number | 8719182073123 |
Pumps
| Dimensions | Max. Ø121x216mm |
| Ampere | 15A |
| Model | L4000 |
| Weight | 2,45kg |
| Voltage | 24V/7,5A |
| Connection | 1-1/2" (38mm) + 2" (50,8mm) |
| Capacity | 1m head - 166l/min |
| Capacity straight | 252l/min |
| Seal | Mechanical seal |
