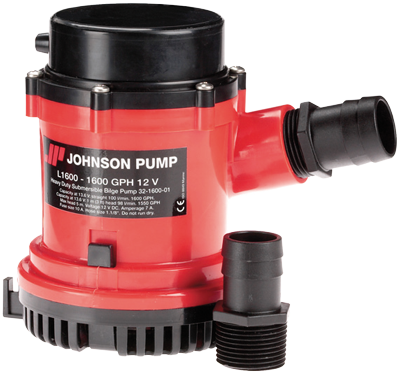

Johnson Pump L-Series Bilge Pump L1600, 12v/7a, 100l/Min, Hose Connection 1-1/8" & 1-1/4"
Article number
6632160001
Description
The Johnson Pump L-series bilge pump L1600 (article number: 6632160001, EAN: 8719182073123) is designed for pumping applications. The product weighs 1.3 kg and has maximum dimensions of Ø108 x 149 mm. The pump operates on a 12V voltage with a current draw of 7A. The maximum head height is 5 metres. It offers a straight-flow capacity of 100 l/min and a capacity of 98 l/min at a 1-metre head height. The unit features a lip seal and comes with dual hose connections of 1-1/8" (28.5 mm) and 1-1/4" (32 mm).
Scope of Delivery:
This item is supplied as a standalone bilge pump (1 piece).
Files
Drawings
| pdf-allpa-Johnson Pump-Submersible |
Properties
General
| Articlenumber | 6632160001 |
| EAN number | 8719182073123 |
Pumps
| Dimensions | Max. Ø108x149mm |
| Model | L1600 |
| Weight | 1,3kg |
| Voltage | 12V/7A |
| Connection | 1-1/8" (28,5mm) + 1-1/4" (32mm) |
| Capacity | 1m head - 98l/min |
| Capacity straight | 100l/min |
| Max. Head | Max. 5m |
| Seal | Lip Seal |
