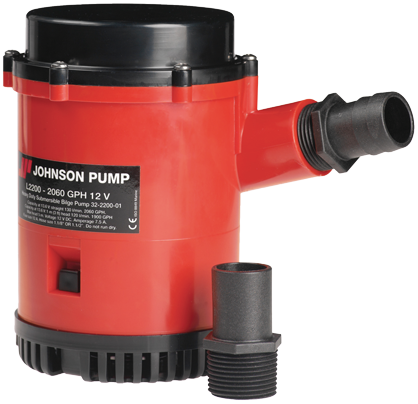

Johnson Pump L-Series Bilge Pump L2200, 24v/4,5a, 130l/Min, Hose Connection 1-1/8" & 1-1/4"

Article number 6632220002

Tags

24V 130l/min

Description

The Johnson Pump L-series bilge pump L2200 (article number: 6632220002, EAN: 8719182073123) is designed for pumping applications. The product weighs 2.25 kg and has maximum dimensions of Ø108 x 177 mm. The pump operates on a 24V voltage with a current draw of 4.5A. The maximum head height is 5 metres. It offers a straight-flow capacity of 130 l/min and a capacity of 120 l/min at a 1-metre head height. The unit features a mechanical seal with carbon and ceramic elements and comes with dual hose connections of 1-1/8" (28.5 mm) and 1-1/4" (32 mm).

Scope of Delivery:

This item is supplied as a standalone bilge pump (1 piece).

Files

Drawings

pdf-allpa-Johnson Pump-Submersible

Properties

General

Articlenumber	6632220002
EAN number	8719182073123

Pumps

Dimensions	Max. Ø108x177mm
Model	L2200
Weight	2,25kg
Voltage	24V/4,5A
Connection	1-1/8" (28,5mm) + 1-1/4" (32mm)
Capacity	1m hoog - 120l/min
Capacity straight	130l/min
Max. Head	Max. 5m
Seal	Glijring / Carbon / Keramiek

Related products

Product	Properties	Price (ex VAT)
Johnson Pump L-Series Bilge Pump L1600, 12v/7a, 100l/Min, Hose Connection 1-1/8" & 1-1/4" 6632160001	Articlenumber 6632160001 Dimensions Max. Ø108x149mm Model L1600 Weight 1,3kg Voltage 12V/7A Connection 1-1/8" (28,5mm) + 1-1/4" (32mm) Capacity 1m head - 98l/min Capacity straight 100l/min Max. Head Max. 5m Seal Lip Seal EAN number 8719182073123 More Less	€ 118,73 Stock 0

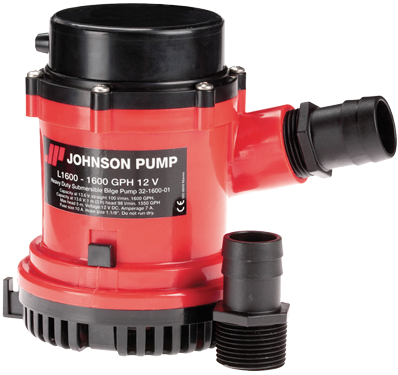

Johnson Pump L-Series Bilge Pump L1600, 24V/3,5A 100l/min, Hose connection 1-1/8" & 1-1/4", max. head 5m. 6632160002	Articlenumber 6632160002 Dimensions Max. Ø108x149mm Model L1600 Weight 1,3kg Voltage 24V/3,5A Connection 1-1/8" (28,5mm) + 1-1/4" (32mm) Capacity 1m head - 98l/min Capacity straight 100l/min Max. Head Max. 5m Seal Lip Seal EAN number 8719182073123 More Less	€ 122,48 Stock 26

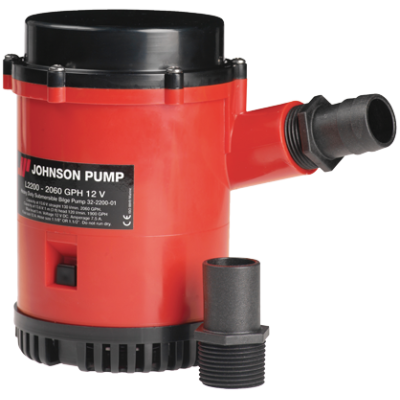

Johnson Pump L-Series Bilge Pump L2200, 12v/7,5a, 130l/Min, Hose Connection 1-1/8" & 1-1/4" 6632220001	Articlenumber 6632220001 Dimensions Max. Ø108x177mm Model L2200 Weight 2,25kg Voltage 12V/7,5A Connection 1-1/8" (28,5mm) + 1-1/4" (32mm) Capacity 1m head - 120l/min Capacity straight 130l/min Max. Head Max. 5m Seal Mechanical seal ring / Carbon / Ceramic EAN number 8719182073123 More Less	€ 160,38 Stock 5
Johnson Pump L-Series Bilge Pump L4000, 12v/15a, 252l/Min, Hose Connection 1-1/2" & 2" 6632400001	Articlenumber 6632400001 Dimensions Max. Ø121x216mm Ampere 25A Model L4000 Weight 2,45kg Voltage 12V/15A Connection 1-1/2" (38mm) + 2" (50,8mm) Capacity 1m head - 166l/min Capacity straight 252l/min Seal Mechanical seal EAN number 8719182073123 More Less	€ 271,40 Stock 0

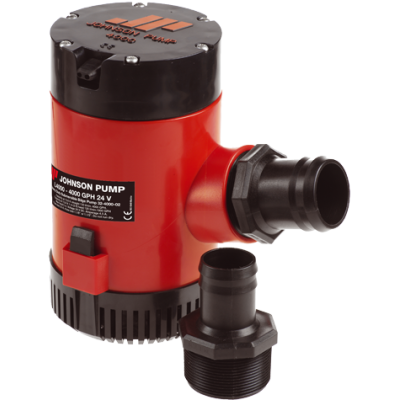

Johnson Pump L-Series Bilge Pump L4000, 24v/7,5a, 252l/Min, Hose Connection 1-1/2" & 2" 6632400002	Articlenumber 6632400002 Dimensions Max. Ø121x216mm Ampere 15A Model L4000 Weight 2,45kg Voltage 24V/7,5A Connection 1-1/2" (38mm) + 2" (50,8mm) Capacity 1m head - 166l/min Capacity straight 252l/min Seal Mechanical seal EAN number 8719182073123 More Less	€ 276,35 Stock 2
