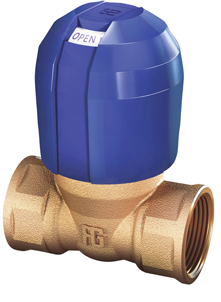

Anti-Lock Safety Valve 3/4", Bronze Housing, 2-Sided Flow Direction

Article number 9002260D

Description

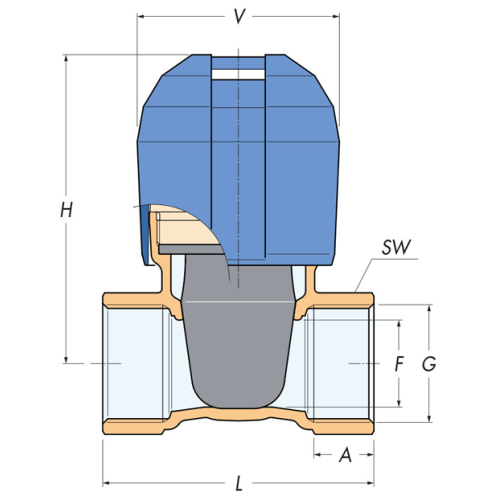

The allpa anti-lock safety valve (article number: 9002260D, EAN: 8719182021230) is designed for interior applications. The product features a bronze body and supports a bi-directional fluid flow direction. Technical dimensions are: thread size G = 3/4", L = 73 mm, H = 85 mm, V = 58 mm, F = 20 mm, A = 16.3 mm, and wrench size SW = 31 mm.

Scope of Delivery:

This item is supplied individually (1 piece).

Properties

General

Articlenumber	9002260D
EAN number	8719182021230

Interior

Dimension A	16,3mm
Dimension F	20mm
Dimension G	3/4"
Dimension H	85mm
Dimension SW	31mm
Dimension L	73mm
Dimension V	58mm
