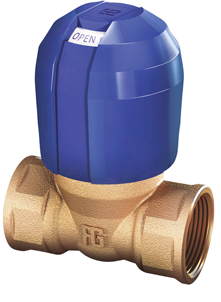

Anti-Lock Safety Valve 1", Bronze Housing, 2-Sided Flow Direction

Article number 9002260E

Description

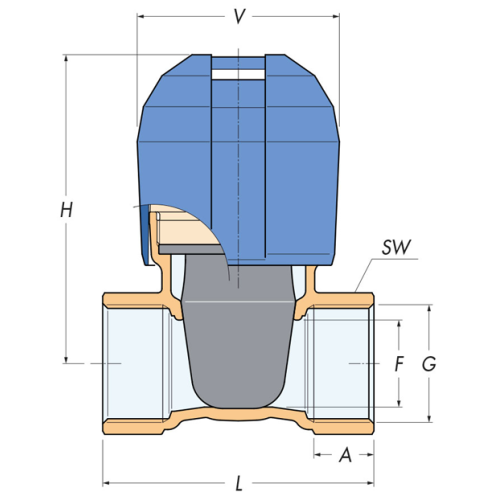

The allpa anti-lock safety valve (article number: 9002260E, EAN: 8719182021230) is designed for interior applications. The product features a bronze body and supports a bi-directional fluid flow direction. Technical dimensions are: thread size G = 1", L = 84 mm, H = 94 mm, V = 63 mm, F = 25 mm, A = 19.1 mm, and wrench size SW = 38 mm.

Scope of Delivery:

This item is supplied individually (1 piece).

Properties

General

Articlenumber	9002260E
EAN number	8719182021230

Interior

Dimension A	19,1mm
Dimension F	25mm
Dimension G	1"
Dimension H	94mm
Dimension SW	38mm
Dimension L	84mm
Dimension V	63mm

Related products

Product	Properties	Price (ex VAT)
Anti-Lock Safety Valve 3/8", Bronze Housing, 2-Sided Flow Direction 9002260B	Articlenumber 9002260B Dimension A 11,4mm Dimension F 15mm Dimension G 3/8" Dimension H 76mm EAN number 8719182021230 Dimension SW 25mm Dimension L 67mm Dimension V 53mm More Less	€ 93,47 Stock 0
Anti-Lock Safety Valve 1/2", Bronze Housing, 2-Sided Flow Direction 9002260C	Articlenumber 9002260C Dimension A 15mm Dimension F 15mm Dimension G 1/2" Dimension H 76mm EAN number 8719182021230 Dimension SW 25mm Dimension L 67mm Dimension V 53mm More Less	€ 93,47 Stock 0
Anti-Lock Safety Valve 3/4", Bronze Housing, 2-Sided Flow Direction 9002260D	Articlenumber 9002260D Dimension A 16,3mm Dimension F 20mm Dimension G 3/4" Dimension H 85mm EAN number 8719182021230 Dimension SW 31mm Dimension L 73mm Dimension V 58mm More Less	€ 105,35 Stock 0
Anti-Lock Safety Valve 1-1/4", Bronze Housing, 2-Sided Flow Direction 9002260F	Articlenumber 9002260F Dimension A 21,4mm Dimension F 33mm Dimension G 1-1/4" Dimension H 110mm EAN number 8719182021230 Dimension SW 47mm Dimension L 97mm Dimension V 72mm More Less	€ 163,02 Stock 0
Anti-Lock Safety Valve 1-1/2", Bronze Housing, 2-Sided Flow Direction 9002260G	Articlenumber 9002260G Dimension A 21,4mm Dimension F 38mm Dimension G 1-1/2" Dimension H 118mm EAN number 8719182021230 Dimension SW 54mm Dimension L 103mm Dimension V 78mm More Less	€ 195,60 Stock 0
Anti-Lock Safety Valve 2", Bronze Housing, 2-Sided Flow Direction 9002260J	Articlenumber 9002260J Dimension A 25,7mm Dimension F 48mm Dimension G 2" Dimension H 139mm EAN number 8719182021230 Dimension SW 67mm Dimension L 124mm Dimension V 90mm More Less	€ 297,95 Stock 0
