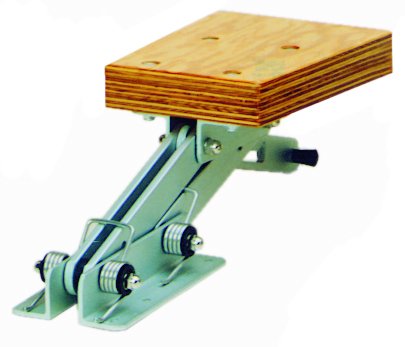

Aluminum Folding Outboard Motor Bracket (Max. 35kg)
Article number
O0500420
Description

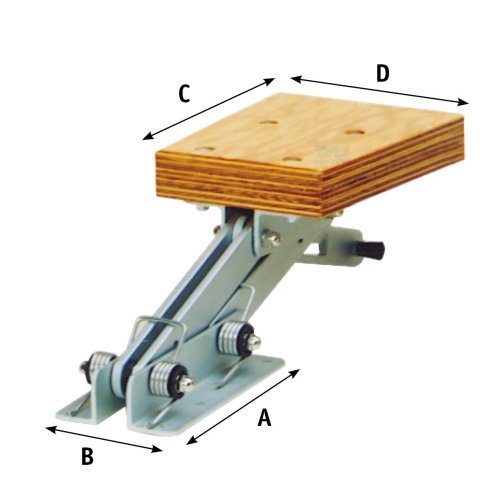

The folding aluminium outboard motor bracket (article number: O0500420) is intended for outboard applications with engines up to a maximum weight of 35 kg. The product is manufactured from folding aluminium and features a board thickness of 44 mm. The specific dimensions are: A = 220 mm, B = 130 mm, C = 265 mm, and D = 208 mm.
Scope of Delivery:
This item is supplied individually (1 piece).
Properties
General
| Articlenumber | O0500420 |
Outboard
| C (mm) | 265mm |
| Weight | Engines up to 35kg |
| Material | Aluminium, folding |
| A (mm) | 220mm |
| B (mm) | 130mm |
| Plank thickness | 44mm |
| D (mm) | 208mm |
